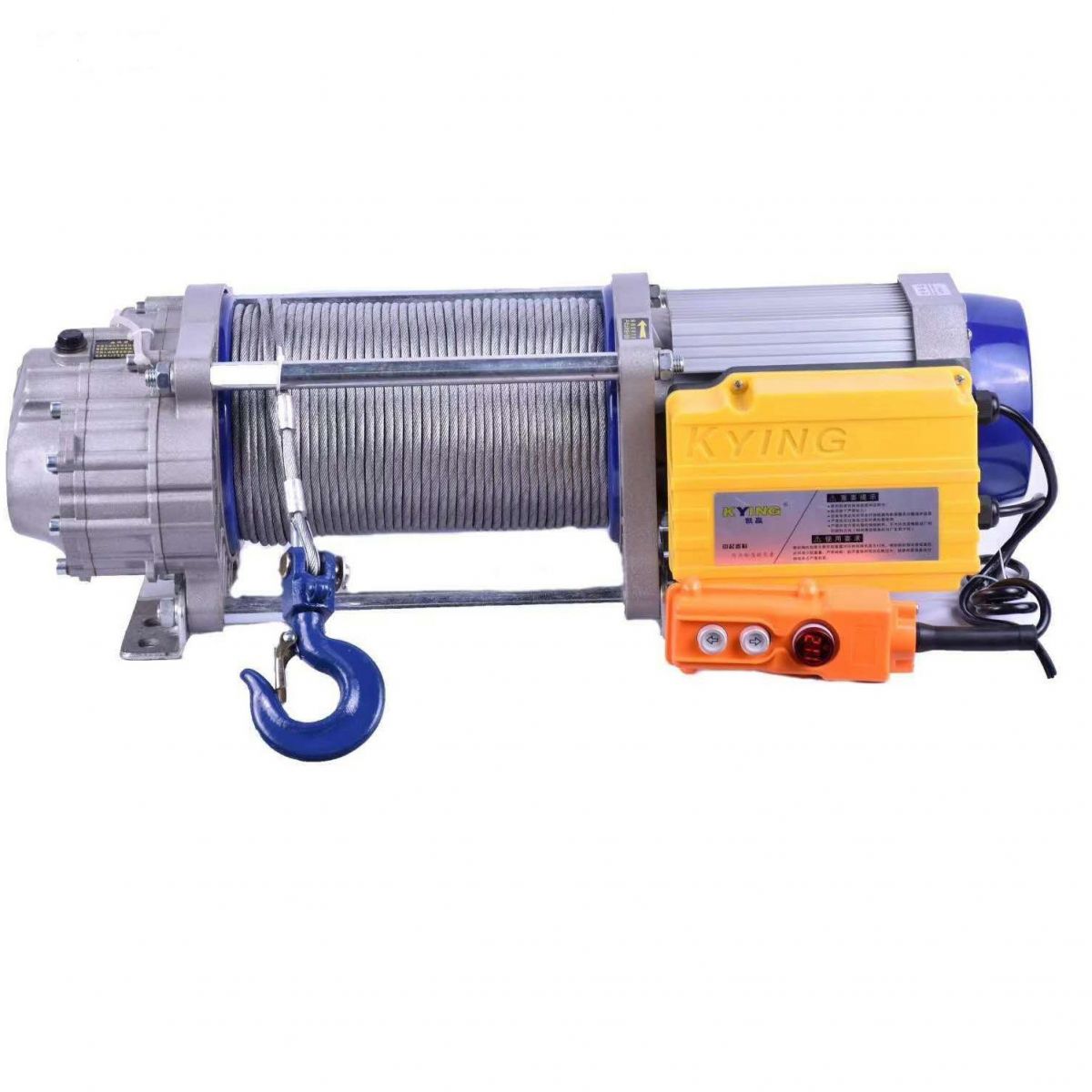

1ton electric winch electric wire rope hoist electric winch
1ton electric hoist is a medium load electric winch hoist.Capacity in single line is 1000kg and capacity in double line is 2000kg.
Description
1ton electric winch electric wire rope hoist electric winch
1ton electric hoist is a medium load electric winch hoist.Capacity in single line is 1000kg and capacity in double line is 2000kg.Spart parts for double line lifting are anchor plates,connecting plates and pulley hook.
Rope drum can be tailored.Standard rope drum length is 180mm.Tailored drum length can be 280mm,380mm,480mm.
Wire rope diameters 6mm,7mm,8mm,9.3mm optional.
1 Quality motor stator with aluminum shell.stator diameter155mm.stator height 125mm
2 Rotor with quality lamination.Rotor diameter 80mm.Rotor height 125mm
3 Gears are made of titanium alloy steel which features high strength and good wear resistance.Gear transmission is of 3 planetary
design.Every gear is manufactured precisely.
4 Gear cover is made of more strengthened and thickened aluminum material.
5 Pulley hook double line capacity 2000kg
6 Electric trolley.Capacity of electric trolley is 3000kg.
