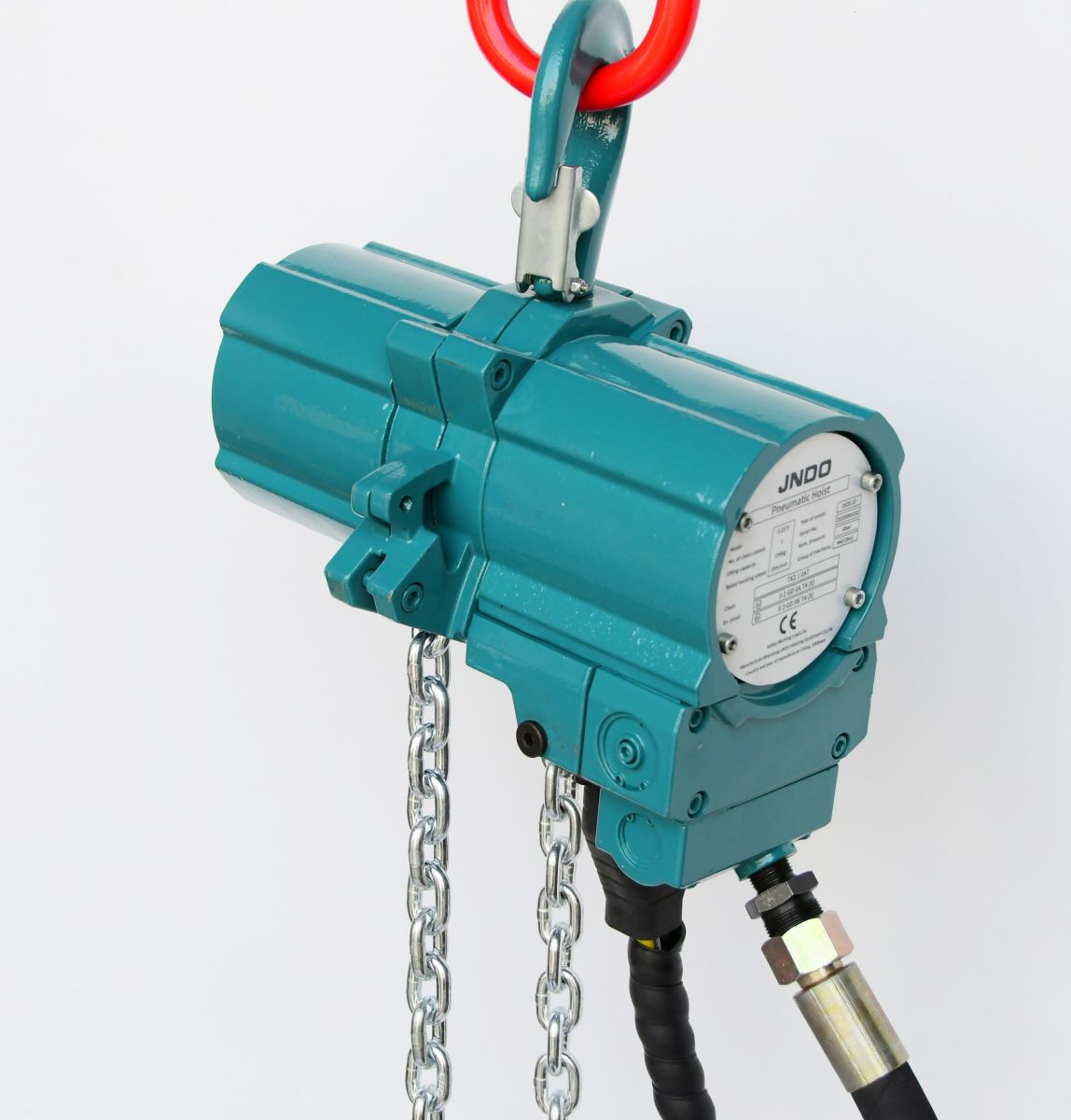

pneumatic chain hoist pneumatic hoist air hoist
Air Hoists which are known for their robust designs. It is suitable for tough industrial applications, even in continuous working processes. Safety features, as 100% duty rating and explosion protection, are an important advantage for applications in hazardous areas,such as chemical and pharmaceutical industry
Air hoist has extremely fast and uniquely adjustable lifting and lowering speeds. It is lightweight, compact and has outstanding feathering ability making it a perfect fit for fast-paced assembly line and workstation crane applications in automotive industry.
Features:
1 Suitable for explosive and corrosive atmosphere
2 Variable speed control,accurate and precise positioning loads
3 Compact and lightweight
4 Overload protection and air cut protection
5 Fail safe disc brake
|
Model |
025TI |
05TI |
1TI |
1.5TI |
2TI |
||||||
|
Air pressure |
4 bar |
6bar |
4 bar |
6bar |
4bar |
6Bar |
4-6bar |
4bar |
6bar |
||
|
Lifting capacity |
0.16T |
0.25T |
0.32T |
0.5T |
0.63T |
1.0T |
1.6T |
1.25T |
2.0T |
||
|
Motor output |
0.6kw |
1.0kw |
0.6kw |
1.0kw |
0.6kw |
1.0KW |
1.3-2KW |
0.6KW |
1.0KW |
||
|
Rotation Speed at full load |
2600 r/min |
2600 R/min |
2600 R/min |
2600 R/min |
2600 R/min |
2600 R/min |
2600 R/min |
2600 R/min |
2600 R/min |
||
|
Rotation speed at empty load |
5000 R/min |
5000 R/min |
5000 R/min |
5000 R/min |
5000 R/min |
5000 r/min |
5000 R/min |
5000 r/min |
5000 R/min |
||
|
Full load Lifting speed |
20m/min |
10m/min |
11m/min |
5m/min |
5.5m/min |
4-6m/min |
2.5m/min |
2.7m/min |
|||
|
Full load Lowering speed |
38m/min |
17m/min |
10m/min |
11m/min |
11-12m/min |
5m/min |
5.5m/min |
||||
|
Full load air consumption |
0.7 Cbm/min |
1.2 Cbm/min |
0.7 Cbm/min |
1.2 Cbm/min |
0.7 Cbm/min |
1.2 Cbm/min |
1.5-2.6 Cbm/min |
0.7 Cbm/min |
1.2 Cbm/min |
||
|
Chain falls |
1 |
1 |
1 |
1 |
2 |
||||||
|
chain size |
7*21mm |
7*21mm |
7*21mm |
9*27mm |
7*21mm |
||||||
|
Chain weight Per meter |
1.0kg |
1.0kg |
1.0kg |
1.8kg |
1.0kg |
||||||
|
Air connection |
G1/2 |
G1/2 |
G1/2 |
G3/4 |
G1/2 |
||||||
|
Air hose diameter |
13mm |
13mm |
13mm |
19mm |
13 |
||||||
|
Standard Lifting height |
3m |
3m |
3m |
3m |
3m |
||||||
|
Controller pipe length |
2m |
2m |
2m |
2m |
2m |
||||||
|
Full load Sound level |
73-74 |
74-75 |
74-76 |
73-77 |
74-76 |
||||||
