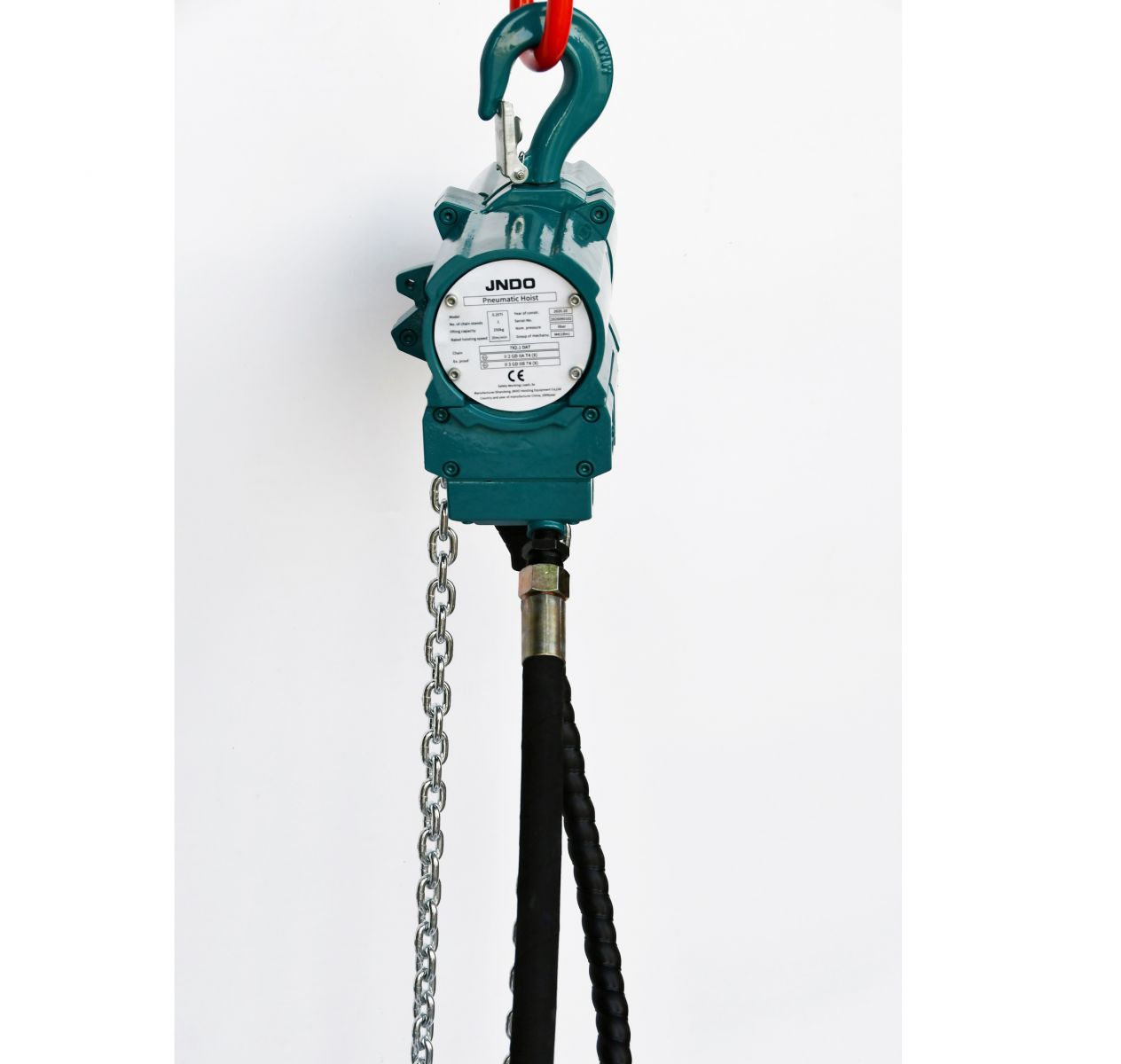

air chain hoist pneumatic chain hoist

Air Hoists which are known for their robust designs. It is suitable for tough industrial applications, even in continuous working processes. Safety features, as 100% duty rating and explosion protection, are an important advantage for applications in haza
    Description

    In air lifting equipment,the air chain hoist generates power by using air instead of electricity which is different from traditional hoists.

    The compressed air does not generate sparks and explosion proof,making the air chain hoist of choice in hazardous areas where with chemical powder,inflammable or volatilizable material.We offer air hoist for the harsh environment found in mines,shipyards,power plants,cement plants,onshore and offshore drilling,oil and gas production platform.

    1 Suitable for explosive and corrosive atmosphere

    2 Precise variable lifting and high speed

    3 Compact and lightweight

    4 Overload protection and air cut protection

    5 Durable brake for safety



    Model

    3TI/2

    3TI/1

    6TI

    10TI

    16TI

    20TI



    Air pressure

    4/6bar

    4/6 bar

    4/6Bar

    4-6bar

    4bar

    6bar



    Lifting capacity

    3.2T

    3.2T

    6.3T

    10T

    1.25T

    2.0T



    Motor output

    1.3/2kw

    1.8/3.5KW

    1.8/3.5KW

    1.8/3.5KW

    1.8/3.5KW

    1.8/3.5KW



    Rotation speed at full load

    2600r/min

    2600r/min

    2600r/min

    2600r/min

    2600r/min

    2600r/min



    Rotation speed

    At empty load

    5000r/min

    5000r/min

    5000r/min

    5000r/min

    5000r/min

    5000r/min



    Full load

    Lifting speed

    2/3m/min

    2.5/5m/min

    1.2/2.5m/min

    0.8/1.6m/min

    0.5/1.0m/min

    0.4/0.7m/min



    Full load

    Lowering speed

    5.5/6m/min

    7.5/10.8m/min

    3.6/5.4m/min

    2.5/3.4 m/min

    1.6/2.1 m/min

    1.2/1.6m/min



    Full load

    air consumption

    1.5/2.6

    Cbm/min

    2/4

    Cbm/min

    2/4

    Cbm/min

    2/4

    Cbm/min

    2/4

    Cbm/min

    2/4

    Cbm/min



    Chain falls

    2

    1

    2

    2

    3

    4



    chain size

    9*27mm

    13*36mm

    13*36mm

    16*45mm

    16*45mm

    16*45mm



    Chain weight

    Per meter

    1.8kg

    3.8kg

    3.8kg

    5.8kg

    5.8kg

    5.8kg



    Air connection

    G3/4

    G3/4

    G3/4

    G3/4

    G3/4

    G3/4



    Air hose

    diameter

    19mm

    19mm

    19mm

    19mm

    19mm

    19mm



    Standard

    Lifting height

    3m

    3m

    3m

    3m

    3m

    3m



    Controller pipe length

    2m

    2m

    2m

    2m

    2m

    2m



    Full load

    Sound level

    73-77

    74

    78

    74-78

    74-78mm

    74-78mm
